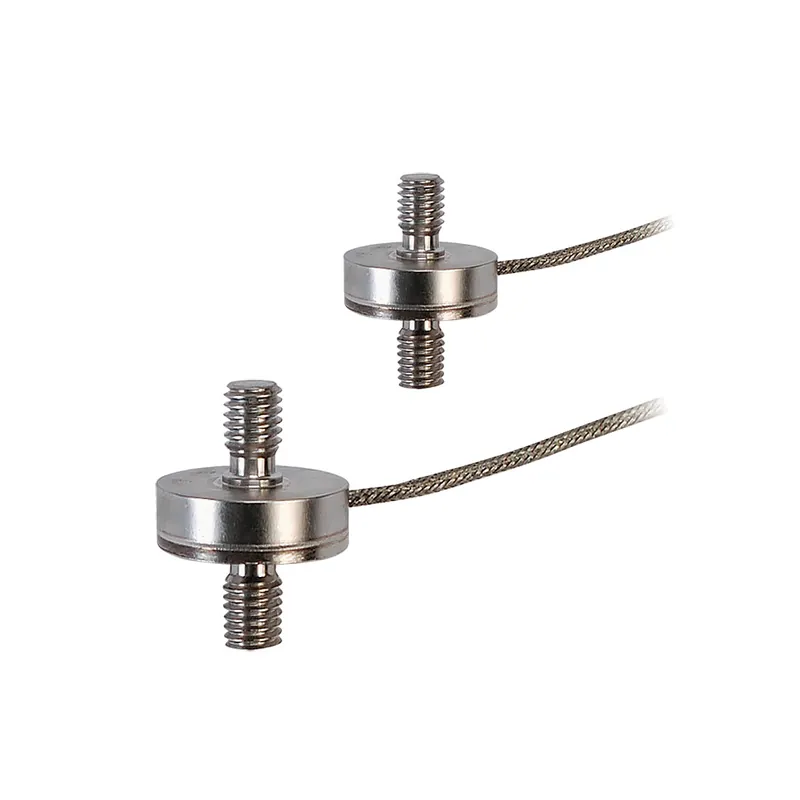

The miniature compression and tension load cells of the LCM201 Series are designed for the demanding environment of industrial automation and robotics. With a main body diameter of only 19 mm and all stainless steel construction, it can fit into small systems and survive harsh environments. The LCM201 delivers high accuracy and long term reliability in a subminiature package.
SPECIFICATIONS:
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±1.0% FSO (linearity, hysteresis and repeatability combined)
Zero Balance: ±2% FSO
Full Scale Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Zero: 0.018% FSO/°C Span: 0.018% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±10 Ohms
Construction: Stainless Steel
Electrical:1.5 m of 4-core screened cable with compensation board
Protection Class: IP54
