Popis
Unique OMEGA family of high temperature types J, K, E or N thermocouples are double-protected with abrasion-resistant Inconel overbraid with high temperature ceramic fibre insulation. A temperature rating of 980°C continuous service and 1090°C short-term service makes these products ideal for many high temperature measurement applications. They are unexcelled for profiling ovens and furnaces.
The 0.8mm diameter solid conductor thermocouple wires are insulated with braided ceramic fibre. Over the fibre is a rugged overbraid of Inconel 600® a tough, high-temperature, high nickel content alloy. Five convenient styles are available in 1 metre, 3 metre and custom lengths for high temperature measurement applications.

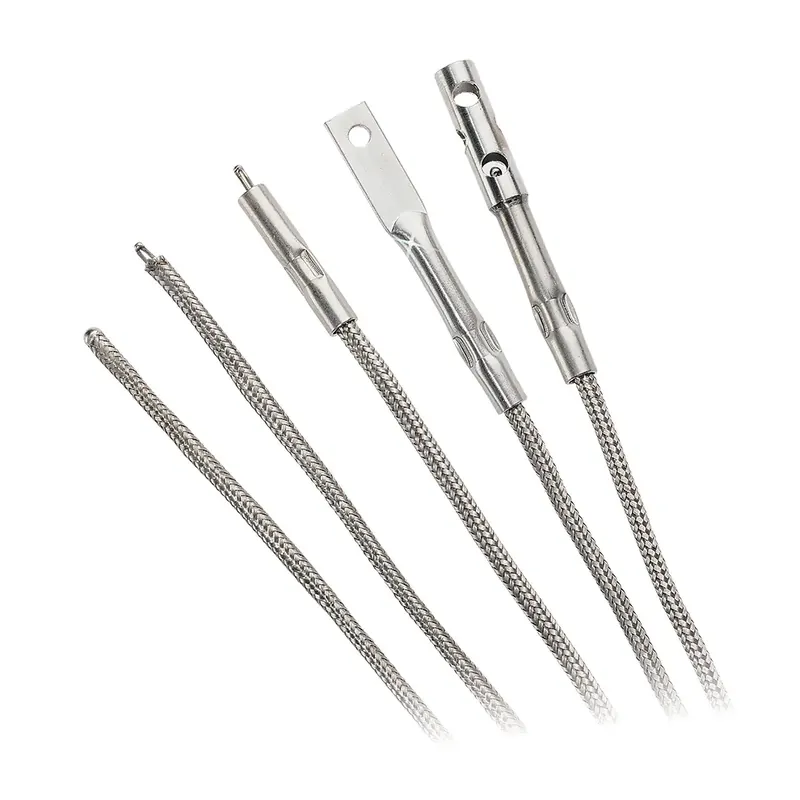

Measuring end types
| Style 1 | A grounded junction thermocouple with the Inconel overbraid welded to form a smooth rounded tip for all general purpose applications. | |
| Style 2 | A general purpose, bead welded, exposed junction thermocouple. | |
| Style 3 | An exposed, bead welded junction thermocouple with an Inconel collar to clamp the probe to a surface, or to secure it into a hole or any fabrication. | |
| Style 4 | Grounded. It can be bolted to a surface, or the Inconel eye can hook the thermocouple to a conveyor flight. Ungrounded units are available. Contact sales for more information. | |
| Style 5 | Has an Inconel air hood to protect the exposed beaded wire junction. This design can be clamped to a surface, hooked to a conveyor flight, or bolted to a surface by using the through hole at the open end of the hood. |
Termination types
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
